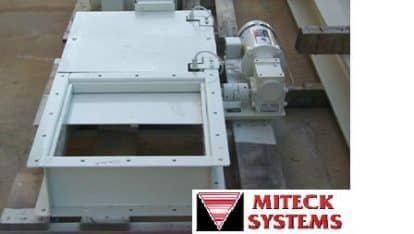

Rack and Pinion Gate

Manually or electrically operated Rack & Pinion   Slide Gate with a rack and pinion drive system.
A rack and pinion dri ve system utilizes spur gears attached to adrive shaft to provide motion to the

blade. The dri ve shaft and spur gears rotate,they drive the blade by inter- connecting
the spur gears with the rack secured to the blade surface.

Miteck performance advantages

  • Low pressure drop due to full blade retraction from flow stream
  • Dual chain or rack and pinion drive designed for actuator maximum stall output
  • Reliable man safe isolation with optional seal air system

standard design features

  • Self cleaning blade seats for 99.99% sealing efficiency
  • Self lubricated sleeve bearings
  • Maintenance-free drive design
  • Corrosion resistant drive and follower shafts
  • Clean out access
  • Actuator is directly coupled to the drive shaft options
  • Push rod/chest style for high temperature or pressure
  • Spectacle designs
  • Enclosed bonnets
  • Dual blade
  • Seal air systems
  • Position indicators

” Since 1996 Miteck systems have earned a reputation on designing & manufacturing of Rack and Pinion Gate, also we have expertise in Rotary Airlock Valve, Diverting Gates, Flap Valves.

Please send us an email on info@mitecksystems.com for more information “
